1. What and Why

What can StatusBar do?

Shows Dashboard and Nmea Data at the bottom of the screen in various formats.

Why is StatusBar useful?

Informs the skipper of conditions that are useful in navigation. StatusBar plugin replaces builtin statusbar. The builtin status bar (disable from the User Interface tab) can be very difficult to read.

The statusbar plugin improves on some of these difficulties. It is best used with OpenGL enabled (requires some basic OpenGL extensions).

2. Installation

A. Where to get this plugin:

Github: https://github.com/seandepagnier/statusbar_pi

Available on the Downloads Page: https://opencpn.org/OpenCPN/info/downloadplugins.html

B. How to install the plugin:

Double-click the downloaded file (with “statusbar_pi” in the name and “.exe” as extension) and follow the set-up instructions.
Open (or restart) OpenCPN.
Click Tools-Options-Plugins
Scroll down until you see the StatusBar-pi.
Click “Enable” to enable the plugin and then hit “Apply”.
Use “Preferences” to set your preferences (should be self-explanatory). Then “Apply.
Then close Options and the data should appear at the bottom of the screen.

C. How to disable the OpenCPN lower Status bar.

Settings > User Interface.
Uncheck “Show Status Bar”.

D. Where is the Cruiser’s Forum Discussion?:

CF Statusbar_pi thread

3. Standard Actions

Preferences Menu

Display String

Display of data is controlled in the Preferences menu in the Display String area. Below is the default Display String entered under Preferences. This area is edited to display the information you would like shown on the screen.

%02A %2.2B%D  %02E %2.2F%H  %.1I %03J\n%02O %2.2P%R %02S %2.2T%V %03W %.2X %03.a

The formatting and values available to the user are listed below under Info

Fonts, Color and Transparency

Under preferences the user can select font, font color and size as well as transparency.

Select Dropdown

Used to control the Appearance of the data. There are three Select string types which can be picked from the dropdown: Default, Ownship, Multiline

wxString DefaultString = _T("Ship %02A %2.4B %D   %02E %2.4F %H   SOG %.2I  COG %03J
%02O %2.4P %R   %02S %2.4T %V   %03W  %.1X    Scale %Z");

wxString OwnshipString = _T("Ship %02A %2.4B %D   %02E %2.4F %H   SOG %.2I  COG %03J");

wxString MultilineString = _T("%02A %2.2B%D  %02E %2.2F%H  %.1I %03J
\n%02O %2.2P%R %02S %2.2T%V %03W %.2X %03.a");

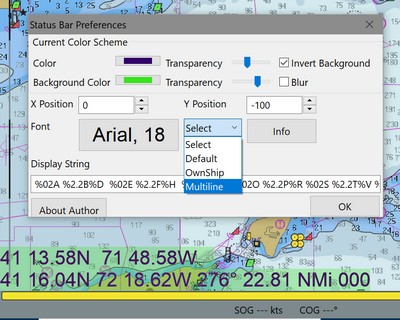

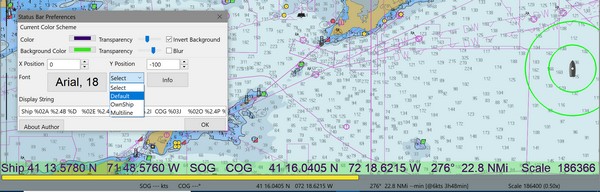

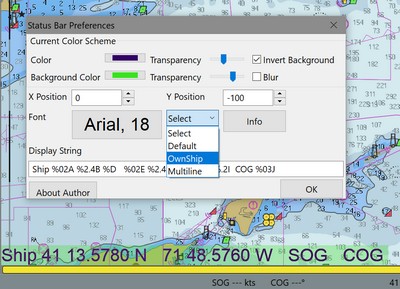

Select Dropdown - Default

Select Dropdown - Multiline

Select Dropdown - Ownship

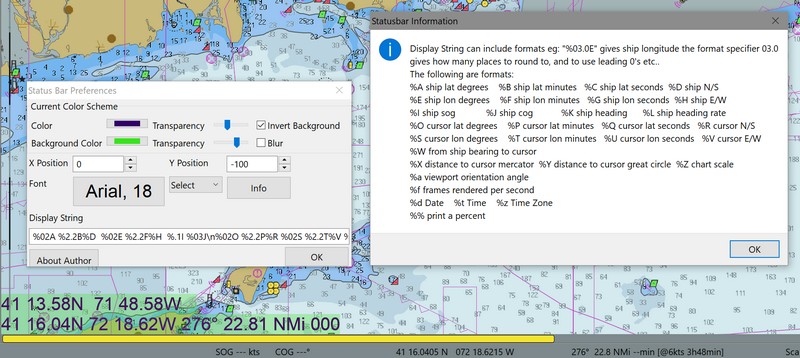

Info Button

The button Info displays a popup window with the Code key. The allowed Display strings can include the following formats:

For example:

"%03.0E\"  Gives ship longitude.
The format specifier 03.0 gives how many places to round to, and to use leading 0's etc.

The following are the specifier formats:

[.np_break]# #

%A

ship lat degrees

%B

ship lat minutes

%C

ship lat seconds

%D

ship North/South

%E

ship lon degrees

%F

ship lon minutes

%G

ship lon seconds

%H

ship East/West

%I

ship sog

%J

ship cog

%K

ship heading true

%L

ship heading magnetic

%O

cursor lat degrees

%P

cursor lat minutes

%Q

cursor lat seconds

%R

cursor North/South

%S

cursor lon degrees

%T

cursor lon minutes

%U

cursor lon seconds

%V

cursor East/West

%W

from ship bearing to cursor

%X

distance to cursor mercator

%Y

distance to cursor great circle

%Z

chart scale

%a

viewport orientation angle

%f

frames rendered per second

%d

Date

%t

Time

%z

Time Zone

%%

print a percent

[.np_break]# #

Sean D’Epagnier is the author of this plugin. His website is http://seandepagnier.users.sourceforge.net/ where you will find a “Donate” button.
